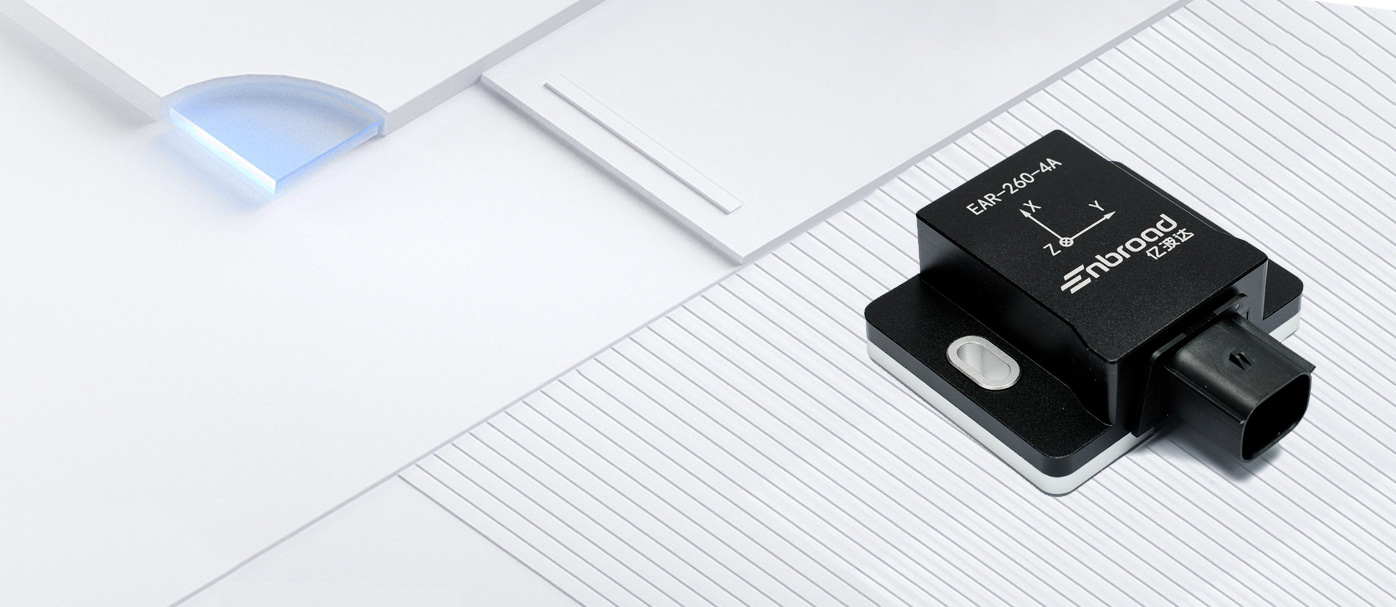

EAR260-4A
EAR260-4A is a high-precision 6-degree-of-freedom MEMS inertial measurement module that comes standard with output of three-axis gyroscope and acceleration raw data, as well as output of attitude data calculated by filter algorithms. High precision and resolution, capable of capturing subtle vibrations and tilts. The output of a large program makes it possible to perceive actions in large dynamics. After strict calibration and compensation before leaving the factory, the product has high reliability and strong environmental adaptability. By matching different software, multiple data interfaces can be supported, and the product can be widely applied in various fields.
性能参数
Basic Characteristics
| Model | Size（mm） | Weight | Operation Temperature（℃） | Interface Type | Operating Voltage（V） | Shock Resistance（g） |
EAR260-4A | 89*80*31 | ≤100 | -40 ~ +85 | RS232/CAN | 9~16 | 2000
|
Attitude Accuracy
| Model | Range(dps） | Dynamic Accuracy(°) | Static Accuracy(°) |
| EAR260-4A | 俯仰±90，横±180 | 0.5 | 0.1 |
