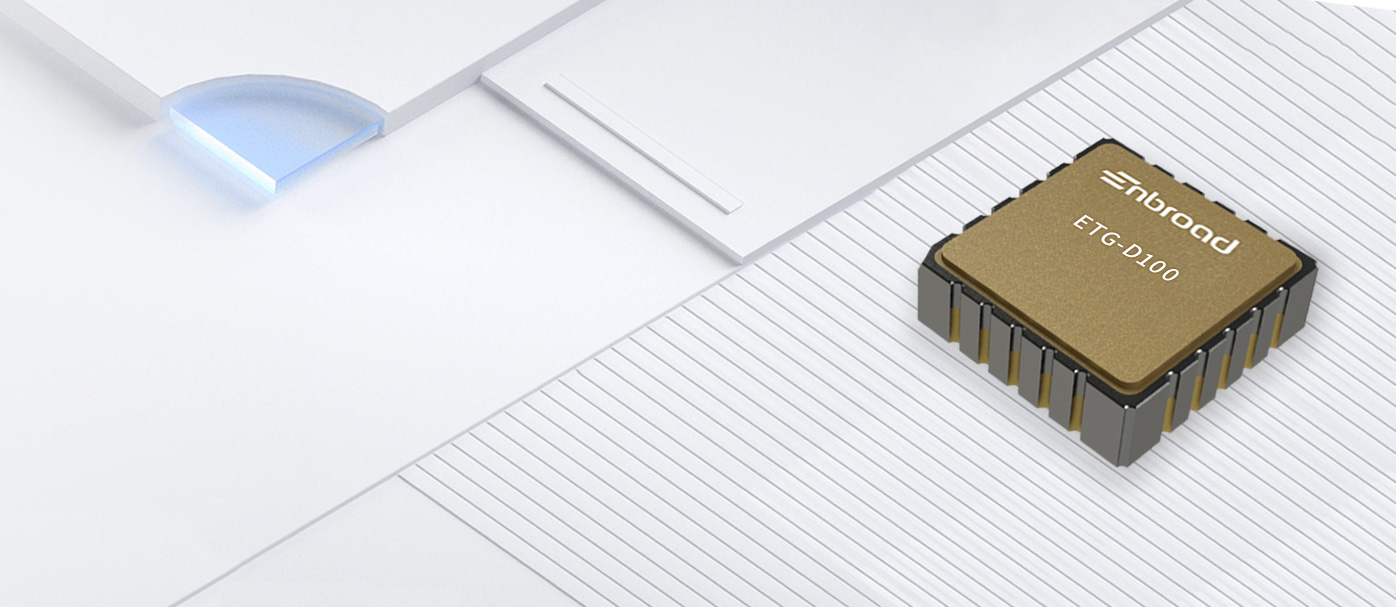

X/Y Dual Axis Gyroscope

ETG-D100

The ETG-D100 series high-performance X/Y biaxial angular velocity sensor (gyroscope) is a biaxial MEMS gyroscope developed based on advanced silicon micro mechanical manufacturing technology and single-chip integrated packaging technology. It supports ± 300 °/s full-scale output performance and zero bias instability below 1 °/hr. The output angular rate data is in 24 bit binary complement format and can be accessed through SPI digital compatible interface. The ETG-D100 series can achieve precise angular velocity measurement in high vibration environments, suitable for applications such as inertial navigation, attitude measurement, and platform stability control.
性能参数 优势特点 应用领域

性能参数


ModelRange（dps）-3dB带宽(Hz)Zero Bias Instability(°/h)Angle Random WalkOperation Temperature（℃）Supply Voltage（V）Package Size（mm）
ETG-D103±30020~300＜1＜0.15-40~125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-D105±50020~300＜1＜0.15-40~125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-D110±100020~300＜1＜0.15-40~125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-D120±200020~300＜1＜0.15-40~125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9



ModelScale Factor(LSB/dps)Scale Factor Temperature CoefficientLinearity ErrorNoise Density(dps/Hz1/2)G-value Sensitivity(dps/g)ADC Precision

Start Time(ms)

Storage temperature（℃）
ETG-D10327962500ppm±0.1%0.001~0.003＜0.00524

500

-50~150
ETG-D10516777500ppm±0.1%0.001~0.003＜0.00524500-50~150
ETG-D1108388500ppm±0.16%0.001~0.003＜0.00924500-50~150
ETG-D1204194500ppm±0.16%0.001~0.003＜0.00924500-50~150
